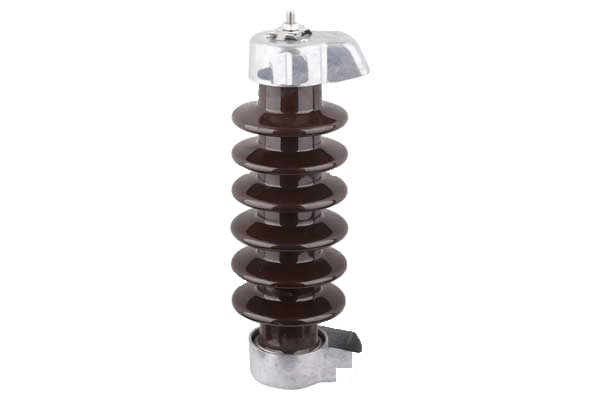

Lightning Arrestor
    Product Description :
  • 9KV, 5KA Rating
  • 18KV, 10KA Rating
Power Transformer

Specifications

Optional Fittings

  • Disconnector
  • LA Mounting Clamp

Technical Specification

Maximum Continuous Operating Voltage (kV) 7.65, 15.30
Applicable Standards IS, IEC
Nominal discharge current (kA) 5, 10
Housing Porcelain
Long Duration current tests
Current Peak 78Amps
Virtual Duration, micro-seconds 1040
System Neutral Condition Solidly Earthed
Type of Installation Outdoor
