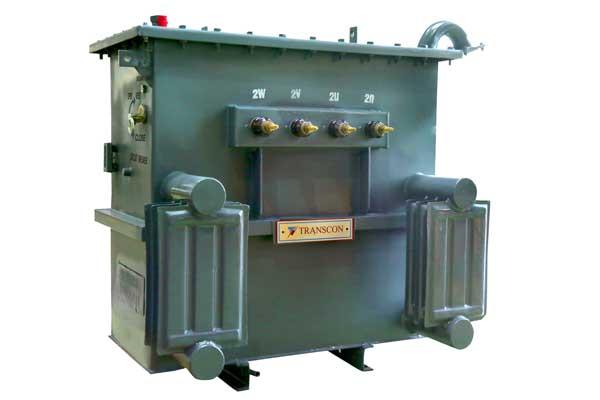

Transformers, whether they are big or small, serve as a key component of any electrical power system. Its main use is to step up or step down voltage levels depending on the usage. But transformers also use a little bit of energy when they are working. These energy losses may be negligible for a single unit, but can add up over time to become a significant problem in industrial plants, commercial buildings, power stations and large distribution grids. Energy efficient transformers are designed to minimise these losses and provide reliable electrical performance. By using better quality materials and improved designs, businesses can effectively reduce wastage of electricity and also reduce operating costs at the same time.
WHAT IS ENERGY EFFICIENT TRANSFORMER?
Such transformers transmit electricity with minimal power loss from one point to another. It operates like any other transformer device but tends to be more optimized compared to other variants. Because transformers are normally operated continuously, even a small improvement in energy loss can result in substantial savings over the life of the transformer.
Typical energy efficient transformers have:
- Magnetic core materials of highest quality
- Better winding redesign
- Lower electrical resistance
- Improved insulation systems
- Reduced no-load and load losses
- Better thermal management
These features make transformers work efficiently and give reliable performance.
WHY DO TRANSFORMERS HAVE POWER LOSSES?
No transformer can be 100% efficient since some of the electrical energy will naturally be dissipated as heat and other forms of loss. The main two types are copper losses and core losses.
Core Losses : Core losses occur whenever the transformer is energised , even when there is little or no electrical load attached to it . They are mainly due to:
- Eddy current loss
- Losses due to eddy currents
The magnetic field in the core keeps changing its direction and this causes hysteresis losses. Eddy currents are small circulating currents induced in the core material. Such type of loss can be reduces by improving the magnetic materials used and improved laminated cores.
Copper Losses: When current flows through the transformer windings, copper losses occur. There is some resistance in electrical conductors , so some energy is converted to heat. With load increase, copper losses increase. So the selection of good quality conductors and proper transformer capacity are important in controlling these losses.
MAIN FEATURES OF ENERGY SAVING TRANSFORMERS
Today’s transformer designs have several features that help make them more efficient and reduce energy use.
High quality of core materials: The no-load losses are greatly affected by the transformer core. Contemporary energy-efficient transformers employ advanced electrical steel or other low-loss magnetic materials to minimise the hysteresis and eddy current losses. An efficient core design allows for the transformer to operate for long periods of time without wasting energy.
Better Winding Design: By developing a solid winding design, one can easily reduce electrical resistance and heat generation. It also reduces load losses by choosing the most suitable conductor, winding, and manufacturing accuracy.
Better Cooling Methods: Heat is one of the major concerns of transformer operation. Too high temperature can cause increased losses and reduced insulation life. Efficient cooling systems are required to keep the operating temperatures at suitable levels. The transformers are cooled by natural or forced air or oil-based cooling or other arrangements depending on the application.
Advanced Insulation: When you have a good insulation system, electrical failures can be avoided. Heat will always build up, and it is up to us to ensure the device does not get overheated.
ADVANTAGES OF ENERGY EFFICIENT TRANSFORMERS
Investment in energy efficient transformers can provide both operational and financial benefits.
Reduced Energy Consumption: When you have lower core and load loses, you will be able to transmit more energy while reducing losses. This is important when the device is working continuously.
Reduced Operating Costs: Lower losses translates into lower electricity bill over time. This saving can serve as a cushion for the initial cost incurred while purchasing the transformer.
Improved Thermal Performance: When losses are reduced, heat generation is also reduced automatically. This way, the transformer device operates under low stress and its components can last for extended period.
Lower Environmental Impact: Lower energy losser basically means energy generated will also be lower. This can help in cutting down emissions and contribute towards collective conservation goals.
SIGNIFICANCE OF PROPER TRANSFORMER RATING
The size of a transformer is directly related to its energy efficiency. If the transformer is too small, it can be overloaded, which increases copper losses and operating temperatures. In contrast, a very large transformer may be operating at low loads, but still have continuous core losses. The ideal transformer should be as close as practicable to the actual and anticipated electrical load. The choice should take into account load patterns, future expansion plans, starting currents, and operating conditions.
THE IMPACT OF MAINTENANCE ON ENERGY EFFICIENCY
Efficiency doesn't mean the transformer can keep running without regular maintenance. Over time, the device will accumulate dirt and will require repair for its parts if it is to perform efficiently at all times.
A simple maintenance programme should include:
- Visual inspection
- Temperature checks
- Testing of oil and insulation where applicable
- Checking electrical connections
- Cooling system inspections
- Monitoring of loads and performance
- Scheduled preventive maintenance
WHERE WE USE ENERGY EFFICIENT TRANSFORMERS?
These transformers are suited for a wide range of requirements where reliable and economical power distribution is critical. Any improvement in overall efficiency can lead to considerable energy savings, which is particularly useful in constant operation.
They are often used in:
- Industrial and manufacturing plants
- Commercial property
- Data center
- Projects in renewable energy
- Distribution networks for utilities
- Infrastructure projects
- Hospitals and institutional facilities
- Large residential projects
CONCLUSION
Efficient transformers are an integral part of modern electrical systems. They assist organisations to use electricity more efficiently and to control operating costs by reducing core losses, copper losses and unnecessary heat build-up. However the initial investment can sometimes be higher than that of a conventional transformer and so energy efficiency is an important consideration when selecting transformer equipment for the long-term benefits. For businesses and industries looking to upgrade their electrical infrastructure, selecting an energy-efficient transformer is a practical means of minimising power losses, improving performance and making energy use more sustainable.
Frequently Asked Questions
What are energy efficient transformers?
Energy efficient transformers are designed to reduce electrical losses during operation while maintaining reliable voltage transformation. Their design may use low-loss core materials, optimized windings, improved insulation and effective thermal management.
What are the main types of transformer power losses?
The two principal types of transformer losses are core losses and load losses. Core losses occur while the transformer is energized and mainly include hysteresis and eddy-current losses, while load losses are primarily associated with winding resistance and increase with load current.
How do energy efficient transformers reduce operating costs?
By reducing no-load and load losses, an energy efficient transformer can reduce the amount of electricity dissipated during operation. The potential cost benefit depends on the transformer rating, load profile, operating hours, electricity tariff and service life.
Why is transformer rating important for energy efficiency?
Transformer rating should be matched as closely as practical to the present and anticipated electrical load. Undersizing can increase loading and heat, while excessive oversizing can result in a transformer operating at low load while still experiencing continuous core losses.
Where are energy efficient transformers commonly used?
Energy efficient transformers can be used in industrial and manufacturing plants, commercial buildings, utility distribution networks, renewable energy projects, infrastructure facilities, hospitals, institutional facilities and large residential developments.
